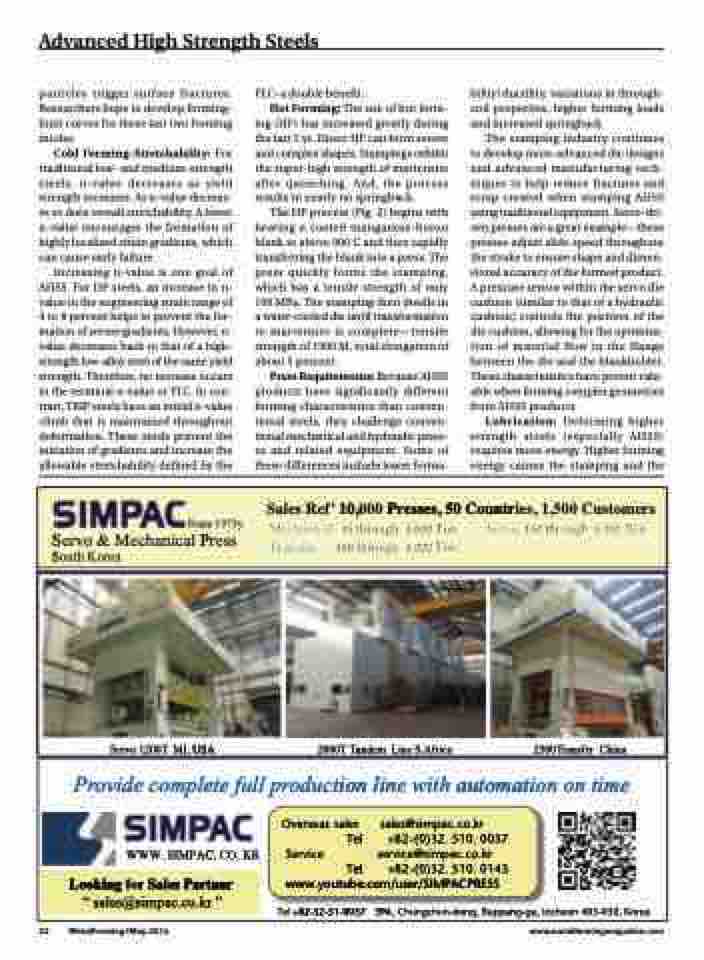

Page 24 - MetalForming May 2014

Advanced High Strength Steels
particles trigger surface fractures. Researchers hope to develop forming- limit curves for these last two forming modes.
Cold Forming–Stretchability: For traditional low- and medium-strength steels, n-value decreases as yield strength increases. As n-value decreas- es so does overall stretchability. A lower n-value encourages the formation of highly localized strain gradients, which can cause early failure.
Increasing n-value is one goal of AHSS. For DP steels, an increase in n- value in the engineering strain range of 4 to 8 percent helps to prevent the for- mation of severe gradients. However, n- value decreases back to that of a high- strength low-alloy steel of the same yield strength. Therefore, no increase occurs in the terminal n-value or FLC. In con- trast, TRIP steels have an initial n-value climb that is maintained throughout deformation. These steels prevent the initiation of gradients and increase the allowable stretchability defined by the
Since 1973y
Servo & Mechanical Press South Korea
FLC–a double benefit.
Hot Forming: The use of hot form-
ing (HF) has increased greatly during the last 5 yr. Direct HF can form severe and complex shapes. Stampings exhibit the super-high strength of martensite after quenching. And, the process results in nearly no springback.
The HF process (Fig. 2) begins with heating a coated manganese-boron blank to above 900 C and then rapidly transferring the blank into a press. The press quickly forms the stamping, which has a tensile strength of only 100 MPa. The stamping then dwells in a water-cooled die until transformation to martensite is complete—tensile strength of 1900 M, total elongation of about 5 percent.
Press Requirements: Because AHSS products have significantly different forming characteristics than conven- tional steels, they challenge conven- tional mechanical and hydraulic press- es and related equipment. Some of these differences include lower forma-
bility/ductility, variations in through- coil properties, higher forming loads and increased springback
The stamping industry continues to develop more-advanced die designs and advanced manufacturing tech- niques to help reduce fractures and scrap created when stamping AHSS using traditional equipment. Servo-dri- ven presses are a great example—these presses adjust slide speed throughout the stroke to ensure shape and dimen- sional accuracy of the formed product. A pressure sensor within the servo die cushion (similar to that of a hydraulic cushion) controls the position of the die cushion, allowing for the optimiza- tion of material flow in the flange between the die and the blankholder. These characteristics have proven valu- able when forming complex geometries from AHSS products.
Lubrication: Deforming higher strength steels (especially AHSS) requires more energy. Higher forming energy causes the stamping and the
22
MetalForming/May 2014
www.metalformingmagazine.com
Servo 1200T MI, USA
Sales Ref’ 10,000 Presses, 50 Countries, 1,500 Customers
2000T Tandem Line S.Africa 2500Transfer China
Provide complete full production line with automation on time
WWW. SIMPAC. CO. KR
Looking for Sales Partner
“ sales@simpac.co.kr ”
Overseas sales Tel
Service
sales@simpac.co.kr +82-(0)32. 510. 0057
service@simpac.co.kr +82-(0)32. 510. 0143
Tel www.youtube.com/user/SIMPACPRESS
Tel +82-32-51-0057 394, Chungchun-dong, Bupyung-gu, Incheon 403-030, Korea
