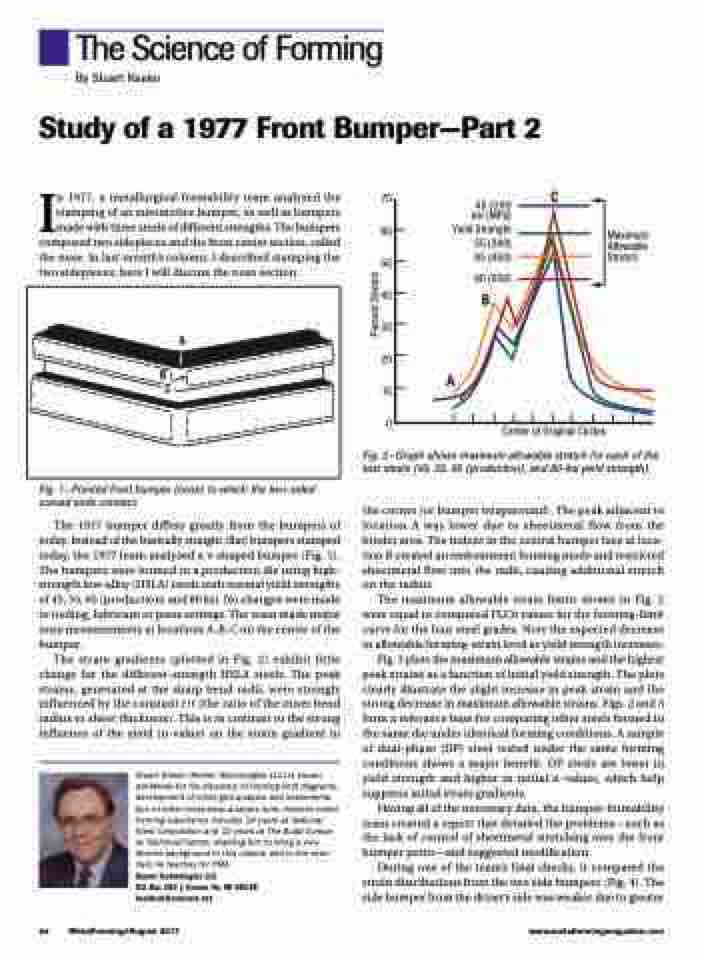

The Science of Forming
By Stuart Keeler
Study of a 1977 Front Bumper—Part 2
70
60
50
40
30
20
10 0
45 (310) C ksi (MPa)
Yield Strength 55 (380) 65 (450)
Maximum Allowable Stretch
80 (550)
B
A
Center of Original Circles
In 1977, a metallurgical formability team analyzed the stamping of an automotive bumper, as well as bumpers made with three steels of different strengths. The bumpers composed two sidepieces and the front center section, called the nose. In last month’s column, I described stamping the two sidepieces; here I will discuss the nose section.
A
B C
Fig. 1—Pointed front bumper (nose) to which the two-sided curved ends connect.
The 1977 bumper differs greatly from the bumpers of today. Instead of the basically straight (flat) bumpers stamped today, the 1977 team analyzed a v-shaped bumper (Fig. 1). The bumpers were formed in a production die using high- strength low-alloy (HSLA) steels with normal yield strengths of 45, 55, 65 (production) and 80 ksi. No changes were made to tooling, lubricant or press settings. The team made major nose measurements at locations A-B-C on the center of the bumper.
The strain gradients (plotted in Fig. 2) exhibit little change for the different-strength HSLA steels. The peak strains, generated at the sharp bend radii, were strongly influenced by the constant r/t (the ratio of the inner bend radius to sheet thickness). This is in contrast to the strong influence of the yield (n-value) on the strain gradient in
Stuart Keeler (Keeler Technologies LLC) is known worldwide for his discovery of forming limit diagrams, development of circle-grid analysis and implementa- tion of other press-shop analysis tools. Keeler’s metal- forming experience includes 24 years at National Steel Corporation and 12 years at The Budd Compa- ny Technical Center, enabling him to bring a very diverse background to this column and to the semi- nars he teaches for PMA.
Keeler Technologies LLC
P.O. Box 283 | Grosse Ile, MI 48138 keeltech@comcast.net
Fig. 2—Graph shows maximum allowable stretch for each of the test steels (45, 55, 65 (production), and 80-ksi yield strength).
the corner (or bumper wraparound). The peak adjacent to location A was lower due to sheetmetal flow from the binder area. The indent in the central bumper face at loca- tion B created an embossment forming mode and restricted sheetmetal flow into the radii, causing additional stretch on the radius.
The maximum allowable strain limits shown in Fig. 2 were equal to computed FLC0 values for the forming-limit curve for the four steel grades. Note the expected decrease in allowable forming-strain level as yield strength increases.
Fig. 3 plots the maximum allowable strains and the highest peak strains as a function of initial yield strength. The plots clearly illustrate the slight increase in peak strain and the strong decrease in maximum allowable strains. Figs. 2 and 3 form a reference base for comparing other steels formed in the same die under identical forming conditions. A sample of dual-phase (DP) steel tested under the same forming conditions shows a major benefit: DP steels are lower in yield strength and higher in initial n-values, which help suppress initial strain gradients.
Having all of the necessary data, the bumper-formability team created a report that detailed the problems—such as the lack of control of sheetmetal stretching over the front bumper point—and suggested modification.
During one of the team’s final checks, it compared the strain distributions from the two side bumpers (Fig. 4). The side bumper from the driver’s side was weaker due to greater
44 MetalForming/August 2017
www.metalformingmagazine.com
Percent Stretch
