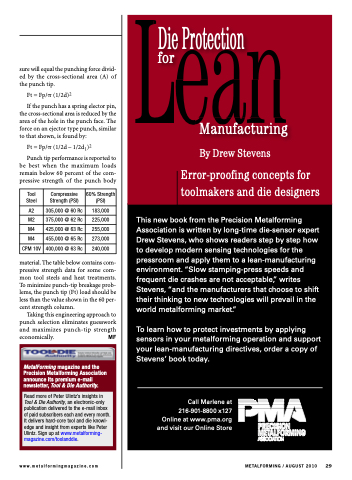

sure will equal the punching force divid- ed by the cross-sectional area (A) of the punch tip.
Ft = Fp/􏰂 (1/2d)2
If the punch has a spring elector pin, the cross-sectional area is reduced by the area of the hole in the punch face. The force on an ejector type punch, similar to that shown, is found by:
Ft = Fp/􏰂 (1/2d – 1/2d1)2
Punch tip performance is reported to be best when the maximum loads remain below 60 percent of the com- pressive strength of the punch body
Tool Steel
Compressive Strength (PSI)
60% Strength (PSI)
A2
305,000 @ 60 Rc
183,000
M2
375,000 @ 62 Rc
225,000
M4
425,000 @ 63 Rc
255,000
M4
455,000 @ 65 Rc
273,000
CPM 10V
400,000 @ 63 Rc
240,000
material. The table below contains com- pressive strength data for some com- mon tool steels and heat treatments. To minimize punch-tip breakage prob- lems, the punch tip (Ft) load should be less than the value shown in the 60 per- cent strength column.
Taking this engineering approach to punch selection eliminates guesswork and maximizes punch-tip strength economically. MF
